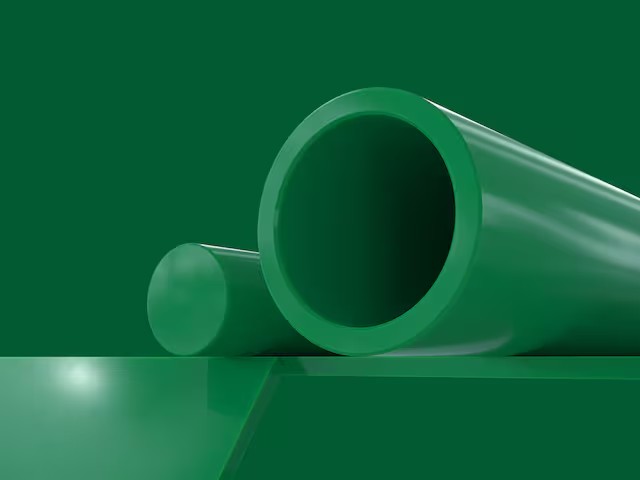

TIVAR™ Sterra™ UHMW-PE shapes are produced from re-processed, industrial ultra-high molecular weight polyethylene materials. These recycled shapes are then re-purposed for use in a variety of industries such as construction and heavy equipment, agriculture and grain handling, bulk material and parcel handling and automotive and transportation.
As a premium grade UHMW-PE that is both economical and eco-friendly, TIVAR™ Sterra™ UHMW-PE components exhibit excellent abrasion and corrosion resistance, outstanding impact strength, minimal moisture absorption and a low coefficient of friction. For these reasons, TIVAR™ Sterra™ UHMW-PE is often a favored solution for wear and outrigger pads, strips, rails, guides, rollers, conveyors, chutes, hoppers, impact plates and asphalt equipment components.
As part of the Sterra™ product portfolio, TIVAR™ Sterra™ contains recycled UHMW-PE and therefore is associated with a significantly lower carbon footprint compared to similar materials derived from non-recycled feedstocks.
PROPERTIES
Excellent abrasion and wear resistance
Outstanding impact strength
Minimal moisture absorption
Low coefficient of friction
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
Continuous allowable service temperature in air
80
Mechanical Properties
Property
Value
Tensile Strength (MPa)
20
Tensile Modulus of Elasticity (MPa)
500
Compressive stress at 1% nominal strain (MPa)
6
Compressive stress at 2% nominal strain (MPa)
9
Compressive stress at 5% nominal strain (MPa)
15
Flexural Strength (MPa)
18
Charpy Impact Notched (kJ/m²)
116P
Chemical Properties
Property
Value
Hot Water / Steam
Limited
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Acceptable
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
Certification Properties
Property
Value
FDA
Not compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Not compliant
Canada AG
USDA
Not compliant
Flammability (UL Rating)
HB
Medical use
RECYCLED - Statera™ portfolio
Miscellaneous Properties
Property
Value
Base Material
UHMW-PE
Brand Family
Colors
Green
Density (g/cm3)
0.94
Water Absorption after 24 hrs immersion in water (%)
