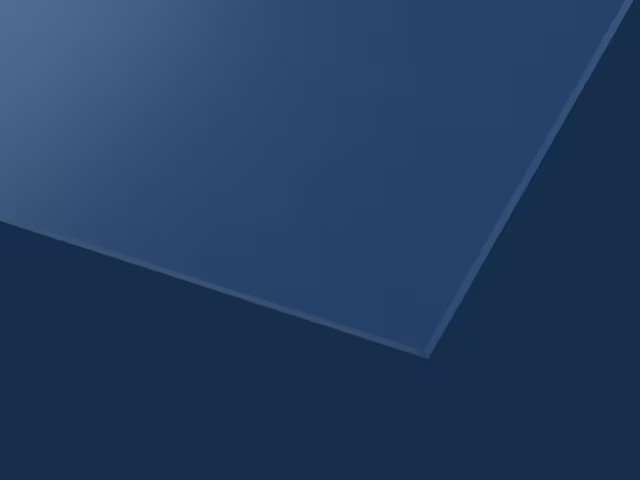

TIVAR™ 88 UHMW-PE is a premium glass-filled grade that offers low moisture absorption, a low coefficient of friction and excellent chemical resistance. TIVAR™ 88 UHMW-PE components are designed to combat flow stoppage, prevent dead volume and allow bulk materials to flow freely. For these reasons, this grade is considered the material of choice for the lining of storage and transport containers, hoppers, chutes, tubes, bunkers, conveyors, vibratory pans and stand pipes. Furthermore, TIVAR™ 88 UHMW-PE liners are available in kits and can be self-installed or professionally-installed through our extensive network of global SystemTIVAR™ Engineering partners.
PROPERTIES
Promotes reliable, steady bulk material flow
Abrasion-, chemical- and corrosion-resistant
Low coefficient of friction
No moisture absorption
Reduces or eliminates arching, ratholing and erratic flow
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
42
Continuous allowable service temperature in air
80
Flammability (UL Rating)
HB
Mechanical Properties
Property
Value
Tensile Strength (MPa)
19
Tensile Modulus of Elasticity (MPa)
790
Compressive stress at 1% nominal strain (MPa)
7
Compressive stress at 2% nominal strain (MPa)
10
Compressive stress at 5% nominal strain (MPa)
16
Flexural Strength (MPa)
18
Charpy Impact Notched (kJ/m²)
96.0
Chemical Properties
Property
Value
Hot Water / Steam
Limited
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Acceptable
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
Industry Specific Usage (FOOD)
Property
Value
FDA
Not compliant
EU
Not compliant
USDA
Not compliant
3A-SSI
Not compliant
VMX materials
Not compliant
Industry Specific Usage (MEDICAL)
Property
Value
ISO 10993-5 and USP <87>
Not compliant
ISO 10993-10 Sensitization
Not compliant
ISO 10993-10 (Intracutaneous Reactivity) and USP <88>
Not compliant
ISO 10993-11 and USP <88>
Not compliant
USP <88> (Implant)
Not compliant
ISO-10993-4
Not compliant
USP <661>
Not compliant
USP Class VI
Not compliant
AFO - Animal Free Origin
Not compliant
Industry Specific Usage (RECYCLED)
Property
Value
Statera™ portfolio
Not compliant
Industry Specific Usage (NUCLEAR)
Property
Value
Shielding Portfolio
Not compliant
PMUC certified
Not compliant
Industry Specific Usage (SEMICON)
Property
Value
ESd materials
Not compliant
Conductive materials
Not compliant
Miscellaneous Properties
Property
Value
Base Material
UHMW-PE
Brand Family
Colors
Blue
Density (g/cm3)
0.93
Water Absorption after 24 hrs immersion in water (%)
