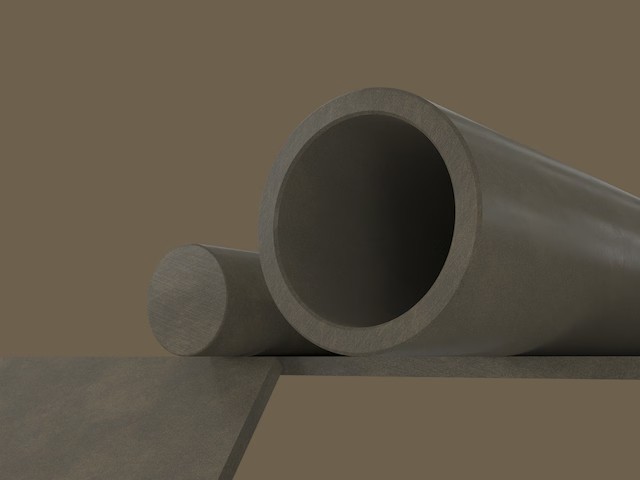

Techtron™ PSGF PPS shapes are compression-molded and glass-filled, giving them extreme dimensional stability as well as improved chemical and corrosion resistance over unfilled polyphenylene sulfide materials. Due to these improved performance characteristics, Techtron™ PSGF PPS is often chosen as a solution for applications involving critical sealing and structural components, such as pump housings, valves and compressors within the oil and gas industry.
PROPERTIES
compression-molded, 40% glass-filled
Improved dimensional stability over unfilled PPS
Improved chemical and corrosion resistance
Maintains its strength to above 220°C (425°F)
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
Continuous allowable service temperature in air
220
Mechanical Properties
Property
Value
Tensile Strength (MPa)
Tensile Modulus of Elasticity (MPa)
Compressive stress at 1% nominal strain (MPa)
Compressive stress at 2% nominal strain (MPa)
Compressive stress at 5% nominal strain (MPa)
Flexural Strength (MPa)
Charpy Impact Notched (kJ/m²)
Chemical Properties
Property
Value
Hot Water / Steam
Acceptable
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Limited
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
Certification Properties
Property
Value
FDA
Not compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Not compliant
Canada AG
USDA
Not compliant
Flammability (UL Rating)
V-0
Medical use
Miscellaneous Properties
Property
Value
Base Material
PPS
Brand Family
Colors
Grey
Density (g/cm3)
Water Absorption after 24 hrs immersion in water (%)
