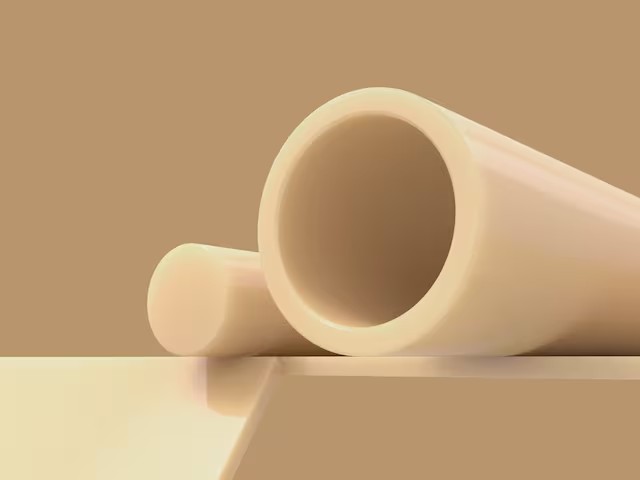

Shapes made from Techtron™ 1000 PPS exhibit outstanding dimensional stability due to their minimal moisture absorption and low coefficient of linear thermal expansion. Due to these characteristics, this polyphenylene sulfide is easy to machine to close to precise tolerances and is ideal for structural applications in corrosive environments.
PROPERTIES
Minimal moisture absorption
Low coefficient of linear thermal expansion
Easy to machine to tight tolerances
Suitable for structural applications in corrosive environments
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
115
Continuous allowable service temperature in air
220
Mechanical Properties
Property
Value
Tensile Strength (MPa)
102
Tensile Modulus of Elasticity (MPa)
4,000
Compressive stress at 1% nominal strain (MPa)
39
Compressive stress at 2% nominal strain (MPa)
77
Compressive stress at 5% nominal strain (MPa)
122
Flexural Strength (MPa)
155
Charpy Impact Notched (kJ/m²)
2.0
Chemical Properties
Property
Value
Hot Water / Steam
Acceptable
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Limited
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
18
Certification Properties
Property
Value
FDA
Compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Not compliant
Canada AG
USDA
Not compliant
Flammability (UL Rating)
V-0
Medical use
FOOD - FDA FOOD - 3A-SSI
Miscellaneous Properties
Property
Value
Base Material
PPS
Brand Family
Colors
Natural (off-white)
Density (g/cm3)
1.35
Water Absorption after 24 hrs immersion in water (%)
