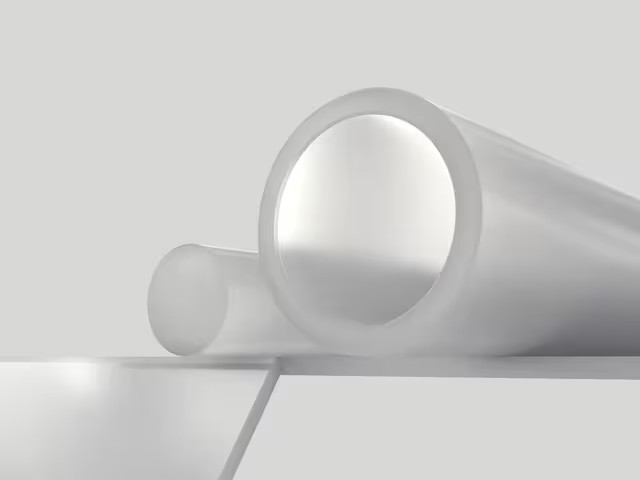

Proteus™ LSG HS PP-H (Life Science Grade, heat-stabilized) stock shapes are made from high purity polypropylene resin that has undergone additional filtration to remove the last remaining black particles, thus increasing purity. The material is pre-assessed for biocompatibility at the stock shape level for bioprocessing applications according to USP VI and ISO 10993 and is supported for use in non-body contacting medical applications.
Heat-stabilized to provide improved dimensional stability and a higher heat deflection temperature compared with standard polypropylene grades, Proteus™ LSG HS components can withstand repeated steam sterilization cycles and autoclaves and are highly resistant to cleaning agents, disinfectants and various solvents. For these reasons, Proteus™ LSG HS is a strong candidate for medical non-body contact applications such as surgical trays, caddies and device housing components.
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
71
Continuous allowable service temperature in air
90
Mechanical Properties
Property
Value
Tensile Strength (MPa)
38
Tensile Modulus of Elasticity (MPa)
1,800
Compressive stress at 1% nominal strain (MPa)
15
Compressive stress at 2% nominal strain (MPa)
27
Compressive stress at 5% nominal strain (MPa)
46
Flexural Strength (MPa)
54
Charpy Impact Notched (kJ/m²)
6.4
Chemical Properties
Property
Value
Hot Water / Steam
Acceptable
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Limited
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
Certification Properties
Property
Value
FDA
Compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Not compliant
Canada AG
USDA
Compliant
Flammability (UL Rating)
HB
Medical use
MEDICAL - ISO 10993-5 and USP <87> MEDICAL - USP <661>
Miscellaneous Properties
Property
Value
Base Material
PP-H
Brand Family
Colors
White Black
Density (g/cm3)
0.92
Water Absorption after 24 hrs immersion in water (%)
