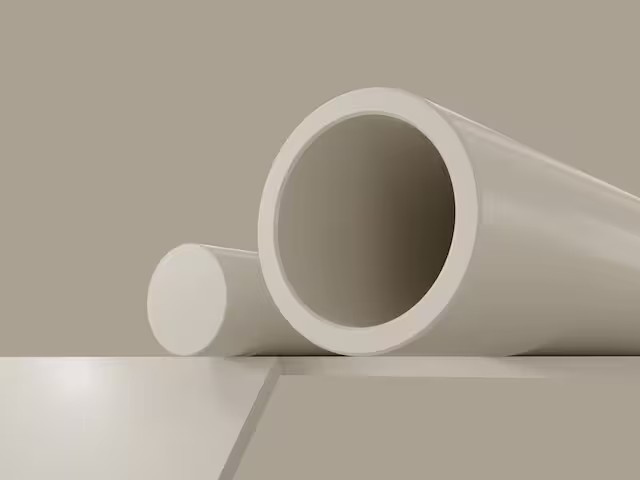

Ketron™ LSG PEEK (Life Science Grade) stock shapes are made from unfilled PEEK resin. Both resin and stock shape are pre-assessed for biocompatibility for up to 24 hours contact with body and tissue according to USP VI and ISO 10993. Some color variations are also pre-assessed for wetted contact applications in bioprocessing.
Ketron™ LSG PEEK shapes exhibit high stiffness and mechanical strength. The components are also sterilizable by means of steam (autoclave), dry heat, EtO (Ethylene Oxide), plasma and gamma and X-ray irradiation, making this material an excellent candidate for applications in the medical and bioprocessing fields, such as endoscopes/laparoscopes, manifolds, valves, connectors, lids and adapters.
PROPERTIES
Pre-assessed on both resin and stock shapes for up to 24 hours contact with body or tissue according to USP VI and ISO 10993
Some color variations pre-assessed for wetted contact in bioprocessing
Unfilled PEEK base for high mechanical strength and chemical resistance
Excellent sterilization resistance via steam, dry heat, EtO, plasma and gamma and X-ray irradiation
Exceptional resistance to high temperatures
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
160
Continuous allowable service temperature in air
250
Mechanical Properties
Property
Value
Tensile Strength (MPa)
115
Tensile Modulus of Elasticity (MPa)
4,300
Compressive stress at 1% nominal strain (MPa)
38
Compressive stress at 2% nominal strain (MPa)
75
Compressive stress at 5% nominal strain (MPa)
140
Flexural Strength (MPa)
170
Charpy Impact Notched (kJ/m²)
3.5
Chemical Properties
Property
Value
Hot Water / Steam
Acceptable
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Limited
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
24
Certification Properties
Property
Value
FDA
Compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Compliant
Canada AG
USDA
Compliant
Flammability (UL Rating)
V-0
Medical use
MEDICAL - ISO 10993-5 and USP <87> MEDICAL - ISO 10993-10 (S) MEDICAL - ISO 10993-10 (IR) and USP <88> MEDICAL - ISO 10993-11 and USP <88> MEDICAL - USP <88> (Implant) MEDICAL - USP VI MEDICAL - ISO 10993-4 MEDICAL - USP <661> MEDICAL - BIOPROCESSING - AFO - Animal Free Origin FOOD - FDA
Miscellaneous Properties
Property
Value
Base Material
PEEK
Brand Family
Colors
Natural (beige) Black Red Yellow Blue Green
Density (g/cm3)
1.31
Water Absorption after 24 hrs immersion in water (%)
