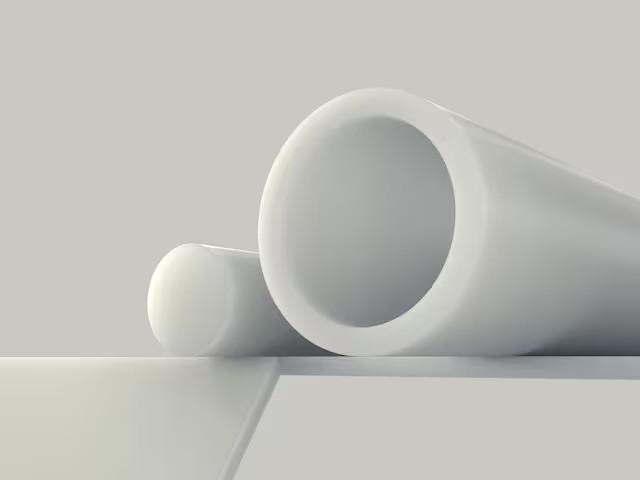

Ertalon™ 6 SA FG PA6 (Food Grade) exhibits a powerful combination of mechanical strength, stiffness and toughness, as well as mechanical damping properties and resistance to creep and wear. Beyond its mechanical performance, this food grade nylon possesses excellent electrical insulating properties and outstanding chemical resistance. Due to these properties and this grade’s FDA (21 CFR § 177.1500) and EU 10/2011 food compliancy, Ertalon™ 6SA FG PA6 is often specified for screw machined electrical insulators, bushings, bearings, gears, roller wheels, star wheels and seals
PROPERTIES
Outstanding mechanical strength
High stiffness and toughness
Mechanical damping properties
Resistance to creep, wear and chemicals
Electrical insulating properties
Food grade
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
80
Continuous allowable service temperature in air
90
Flammability (UL Rating)
HB
Mechanical Properties
Property
Value
Tensile Strength (MPa)
88
Tensile Modulus of Elasticity (MPa)
3,600
Compressive stress at 1% nominal strain (MPa)
34
Compressive stress at 2% nominal strain (MPa)
64
Compressive stress at 5% nominal strain (MPa)
93
Flexural Strength (MPa)
121
Charpy Impact Notched (kJ/m²)
3.0
Chemical Properties
Property
Value
Hot Water / Steam
Limited
Acids, Weak
Limited
Acids, Strong (pH 1-3)
Not acceptable
Alkalies, Weak
Limited
Alkalies, Strong (pH 11-14)
Not acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Limited
Alcohols
Limited
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
25
Industry Specific Usage (FOOD)
Property
Value
FDA
Compliant
EU
Compliant
USDA
Not compliant
3A-SSI
Not compliant
VMX materials
Not compliant
Industry Specific Usage (MEDICAL)
Property
Value
ISO 10993-5 and USP <87>
Not compliant
ISO 10993-10 Sensitization
Not compliant
ISO 10993-10 (Intracutaneous Reactivity) and USP <88>
Not compliant
ISO 10993-11 and USP <88>
Not compliant
USP <88> (Implant)
Not compliant
ISO-10993-4
Not compliant
USP <661>
Not compliant
USP Class VI
Not compliant
AFO - Animal Free Origin
Not compliant
Industry Specific Usage (RECYCLED)
Property
Value
Statera™ portfolio
Not compliant
Industry Specific Usage (NUCLEAR)
Property
Value
Shielding Portfolio
Not compliant
PMUC certified
Not compliant
Industry Specific Usage (SEMICON)
Property
Value
ESd materials
Not compliant
Conductive materials
Not compliant
Miscellaneous Properties
Property
Value
Base Material
PA6
Brand Family
Colors
Natural
Density (g/cm3)
1.15
Water Absorption after 24 hrs immersion in water (%)
