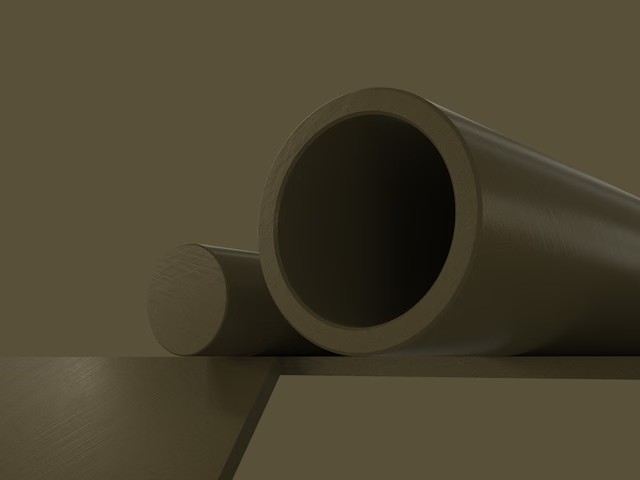

Duratron™ T5530 PAI is a compression-molded, 30% glass-reinforced material that offers high stiffness, strength and creep resistance. Although similar in composition to Duratron™ T5030 PAI, Duratron™ T5530 PAI comes in larger geometries, making it ideal for structural applications meant to support high static loads for extended periods of time, especially at high temperatures. Additionally, Duratron™ T5530 PAI exhibits superior dimensional stability up to 250°C (482°F), making it a favored solution for precision parts in the semiconductor and electronics industry.
PROPERTIES
30% glass-reinforced
High stiffness, strength and creep resistance
High load-bearing capacity at high temperatures
Superior dimensional stability up to 250°C (482°F)
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
280
Continuous allowable service temperature in air
260
Mechanical Properties
Property
Value
Tensile Strength (MPa)
125
Tensile Modulus of Elasticity (MPa)
6,400
Compressive stress at 1% nominal strain (MPa)
55
Compressive stress at 2% nominal strain (MPa)
104
Compressive stress at 5% nominal strain (MPa)
190
Flexural Strength (MPa)
170
Charpy Impact Notched (kJ/m²)
3.5
Chemical Properties
Property
Value
Hot Water / Steam
Limited
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Limited
Alkalies, Weak
Limited
Alkalies, Strong (pH 11-14)
Not acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
28
Certification Properties
Property
Value
FDA
Not compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Not compliant
Canada AG
USDA
Not compliant
Flammability (UL Rating)
V-0
Medical use
Miscellaneous Properties
Property
Value
Base Material
PAI
Brand Family
Colors
Yellow-brown
Density (g/cm3)
1.61
Water Absorption after 24 hrs immersion in water (%)
