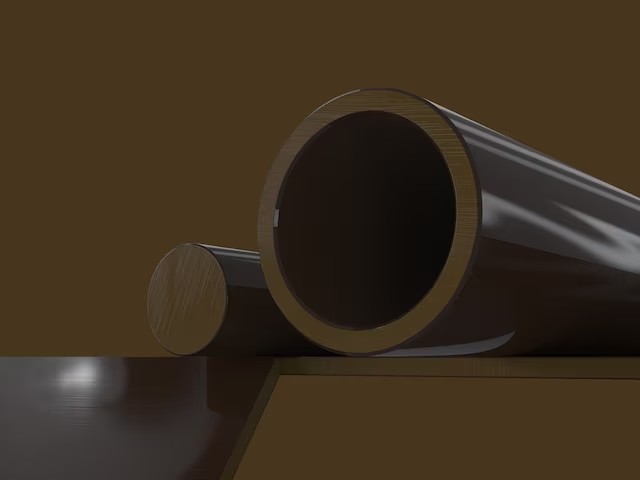

Duratron™ T5030 PAI offers high rigidity, retention of stiffness, a low expansion rate and outstanding load-carrying capabilities. As a 30% glass-reinforced polyamideimide material, this grade is ideal for structural applications within the semiconductor and electronics and aerospace industries. It is well suited for structural applications supporting static loads for long periods of time at high temperatures. In addition, Duratron™ T5030 PAI exhibits superb dimensional stability up to 260°C (500°F) making it extremely popular for precision parts in the electronical and semiconductor industries. The suitability of Duratron™ T5030 PAI for sliding parts, however, is to be carefully examined since the glass fibers tend to abrade the mating surface.
PROPERTIES
Chemical resistant
Creep resistant
Dimensional stability
High strength and stiffness
wear-resistant
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
Continuous allowable service temperature in air
260
Mechanical Properties
Property
Value
Tensile Strength (MPa)
Tensile Modulus of Elasticity (MPa)
Compressive stress at 1% nominal strain (MPa)
Compressive stress at 2% nominal strain (MPa)
Compressive stress at 5% nominal strain (MPa)
Flexural Strength (MPa)
Charpy Impact Notched (kJ/m²)
Chemical Properties
Property
Value
Hot Water / Steam
Limited
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Limited
Alkalies, Weak
Limited
Alkalies, Strong (pH 11-14)
Not acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
Certification Properties
Property
Value
FDA
Not compliant
European Food Approval
Not compliant
NSF
Not compliant
3A-SSI
Not compliant
Canada AG
USDA
Not compliant
Flammability (UL Rating)
V-0
Medical use
Miscellaneous Properties
Property
Value
Base Material
PAI
Brand Family
Colors
Yellow-brown
Density (g/cm3)
Water Absorption after 24 hrs immersion in water (%)
