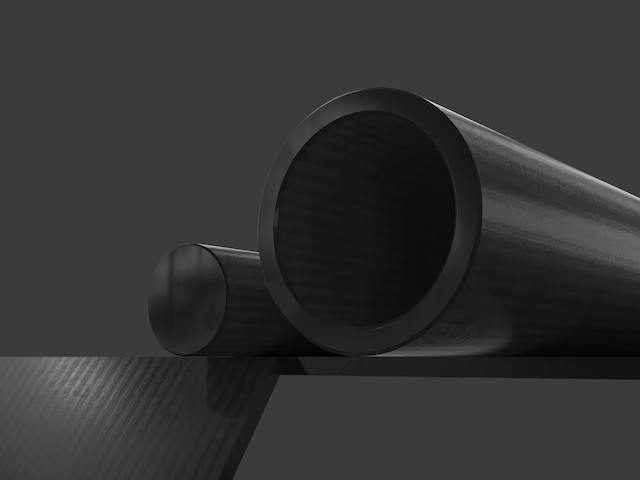

Ketron™ Sterra™ CA30 is a 30% carbon fiber-reinforced PEEK grade that exhibits even higher stiffness, mechanical strength and creep and wear resistance than Ketron™ GF30 PEEK. With a significantly reduced thermal expansion, optimum load-carrying capabilities and high thermal conductivity rates, Ketron™ Sterra™ CA30 PEEK components are often favored for their ability to extend part life and rapidly dissipate heat in bearing applications.
As part of the Sterra™ product portfolio, this material contains recycled content and exhibits a significantly lower carbon footprint compared to similar materials derived from non-recycled feedstocks. For details, please refer to the respective environmental data sheet.
PROPERTIES
abrasion-resistant
Outstanding chemical and wear resistance
Reduced thermal expansion
Ability to extend part life and rapidly dissipate heat
Optimum load-carrying capabilities
Thermal Properties
Property
Value
Heat Deflection Temperature at 1.8MPa (264 psi) (ºC)
260
Continuous allowable service temperature in air
250
Flammability (UL Rating)
V-0
Mechanical Properties
Property
Value
Tensile Strength (MPa)
110
Tensile Modulus of Elasticity (MPa)
6,200
Compressive stress at 1% nominal strain (MPa)
69
Compressive stress at 2% nominal strain (MPa)
125
Compressive stress at 5% nominal strain (MPa)
170
Flexural Strength (MPa)
220
Charpy Impact Notched (kJ/m²)
5.0
Chemical Properties
Property
Value
Hot Water / Steam
Acceptable
Acids, Weak
Acceptable
Acids, Strong (pH 1-3)
Not acceptable
Alkalies, Weak
Acceptable
Alkalies, Strong (pH 11-14)
Acceptable
Hydrocarbons - Aromatic
Acceptable
Hydrocarbons - Aliphatic
Acceptable
Ketones, Esters
Acceptable
Chlorinated Solvents
Acceptable
Alcohols
Acceptable
Inorganic Salt Solutions
Acceptable
Electrical Properties
Property
Value
Dielectric Strength (kV/mm)
Industry Specific Usage (FOOD)
Property
Value
FDA
Not compliant
EU
Not compliant
USDA
Not compliant
3A-SSI
Not compliant
VMX materials
Not compliant
Industry Specific Usage (MEDICAL)
Property
Value
ISO 10993-5 and USP <87>
Not compliant
ISO 10993-10 Sensitization
Not compliant
ISO 10993-10 (Intracutaneous Reactivity) and USP <88>
Not compliant
ISO 10993-11 and USP <88>
Not compliant
USP <88> (Implant)
Not compliant
ISO-10993-4
Not compliant
USP <661>
Not compliant
USP Class VI
Not compliant
AFO - Animal Free Origin
Not compliant
Industry Specific Usage (RECYCLED)
Property
Value
Statera™ portfolio
Compliant
Industry Specific Usage (NUCLEAR)
Property
Value
Shielding Portfolio
Not compliant
PMUC certified
Not compliant
Industry Specific Usage (SEMICON)
Property
Value
ESd materials
Compliant
Conductive materials
Not compliant
Miscellaneous Properties
Property
Value
Base Material
PEEK
Brand Family
Colors
Brown-Grey
Density (g/cm3)
1.4
Water Absorption after 24 hrs immersion in water (%)
